Product Description:

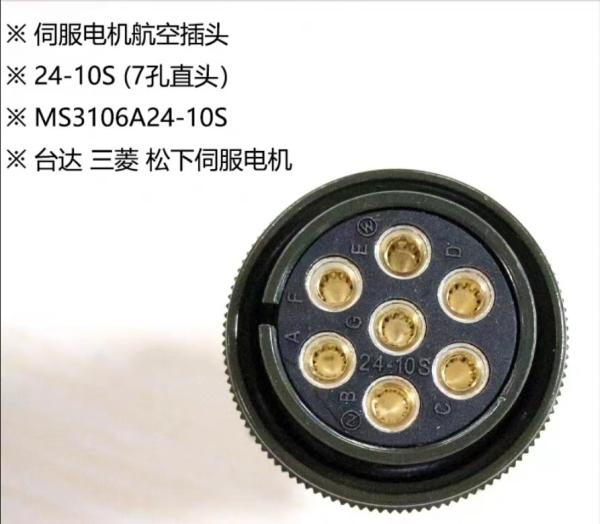

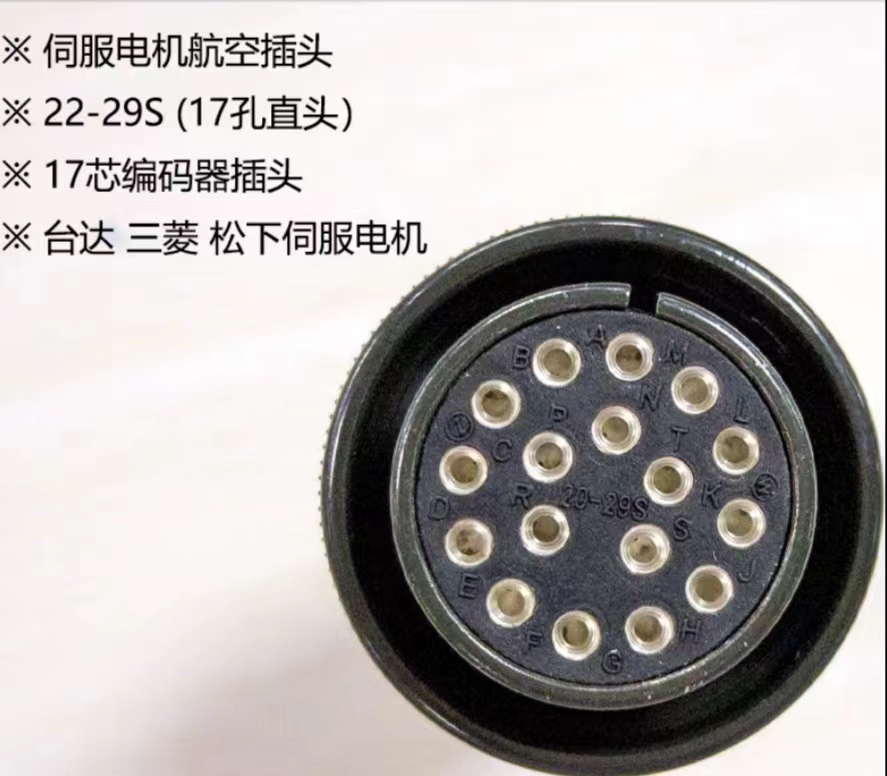

Servo Motor Connectors 10SL-4 22-22S 18-10S 32-17S 20-4S 20-18S
22-29S 24-10S
Servo Motor Connectors are made with material like metal and
plastic. This product is designed with the MS Series Connector and
its insulation resistance is perfect for servo motor connectors. It
can function well in a temperature range from -40℃ To +105℃, which
is suitable for industrial automation. Especially, it is ideal for
AC Brushless Servo Motor, Hydraulic Brake Motors, and other
hydraulic brake motors. It provides excellent reliability in
industrial applications.
The MS series analog American standard electrical connectors are
currently widely used for electrical connections between electronic
equipment and instruments. It meets the MIL-C-5015 standard,20- and
the product has light weight, multiple specifications, threaded
connections, good sealing performance, corrosion resistance,
conductivity, and mechanical strength.

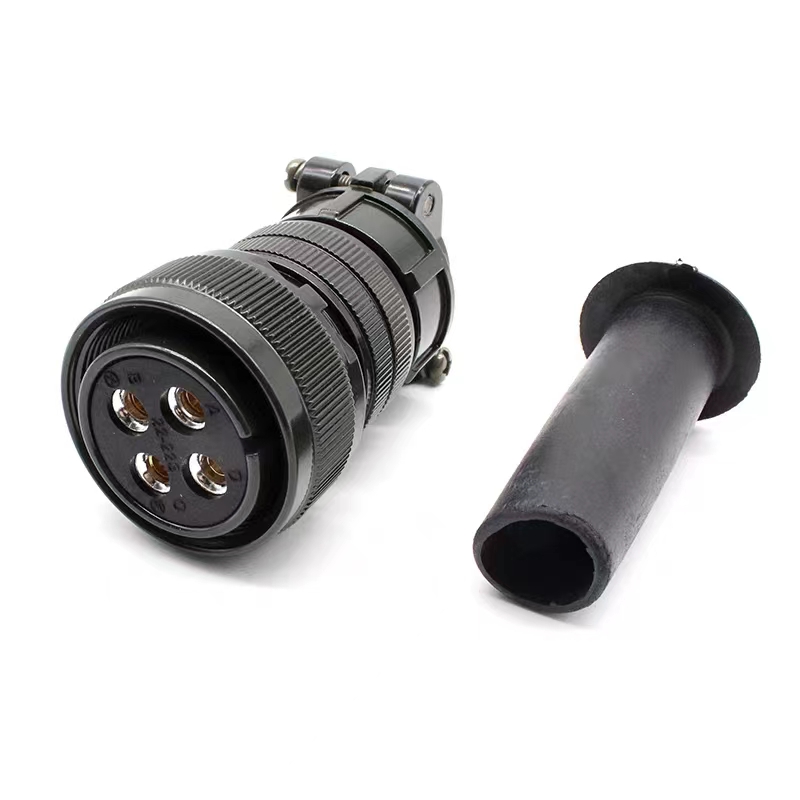

MS3106 straight head MS3108 Angle part MS3102 socket
Servo Motor Connectors provide reliable connections for AC
Brushless Servo Motors, Hydraulic Brake Motors, DC Servo Motor
Drive Systems and more. With an operating temperature range of -40℃
To +105℃, an IP rating of MS Series Connector, an insulation
resistance of Servo Motor Connector and wire gauges of 18-24 AWG or
more, these connectors come with both male and female genders for
ultimate versatility. With our servo motor connectors, you can
always count on the highest quality connection.
Features:
- Product Name: Servo Motor Connectors
- Mounting Type: Panel Mount/Cable Mount
- Gender: Male/Female
- Connector Type: Servo Motor
- Insulation Resistance: Servo Motor Connector
- Application: Industrial Automation
- Special Features: AC Brushless Servo Motor, DC Servo Motor Drive, Brushless Servo
Motor
Technical Parameters:
| Parameter | Specification |
|---|
| Contact Plating | Gold/Silver |
| Termination Type | Crimp/Solder |
| Gender | Male/Female |
| Mounting Type | Panel Mount/Cable Mount |
| Insulation Resistance | Servo Motor Connector |
| Number of Contacts | 4pin 9pin 17pin |
| Operating Temperature | -40℃ To +105℃ |
| Application | Industrial Automation |
| Material | Metal/Plastic |
| Connector Type | Servo Motor |
| High Torque DC Servo Motor | Yes |
| Brushless Servo Motor | Yes |
| DC Servo Motor Drive | Yes |
Applications:
NO MARK's MS3106A Servo Motor Connectors are designed for a wide
range of DC and AC servo motor drive applications in industrial
automation. These Servo Motor Connectors are made with superior
quality materials and have a voltage rating of 250V, 500V, and
1000V. The wire gauge of the connectors ranges from 18-24 AWG or
above, and the contact plating is available in both gold and
silver. The minimum order quantity is 100 pieces, and the delivery
time is 1-3 working days. NO MARK provides payment options such as
T/T and PayPal, and offers a supply capacity of up to 1000 pieces
per day. Each connector is packaged in a carton box and has CE and
ISO9001 certifications.
Customization:
Servo Motor Connectors
Brand Name: NO MARK
Model Number: MS3106A
Place of Origin: China
Certification: CE, ISO9001
Minimum Order Quantity: 100
Price: NA
Packaging Details: Carton box
Delivery Time: 1-3 working days
Payment Terms: T/T, PayPal
Supply Ability: 1000 pcs/day
Material: Metal/Plastic
Operating Temperature: -40℃ To +105℃
Voltage Rating: 250V 500V 1000V
Contact Plating: Gold/Silver
Number of Contacts: 4pin 9pin 17pin
We provide high quality Servo Motor Connectors for High Torque DC
Servo Motor, AC Brushless Servo Motor and High Torque DC Servo
Motor Connectors.
Support and Services:
Servo Motor Connectors Technical Support and Services
- Provide help with installing and setting up your Servo Motor
Connectors.
- Assist with identifying and troubleshooting any issues you may
encounter.
- Provide guidance with maintaining and repairing your Servo Motor
Connectors.
- Answer any product-related questions.
- Supply advice and support to ensure you are using your Servo Motor
Connectors correctly and safely.
Packing and Shipping:
Packaging and Shipping of Servo Motor Connectors:
- The product will be carefully packaged with bubble wrap and
cardboard box to prevent damage in transit.
- The product will be shipped by air or sea according to customer
requirements.
- We offer tracking information for all orders.
- We strive to ensure that all orders are delivered to customers
within the estimated time frame.
